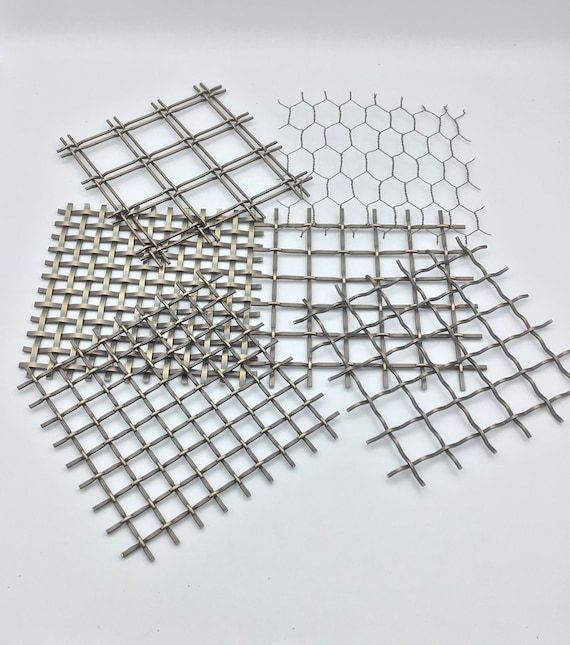

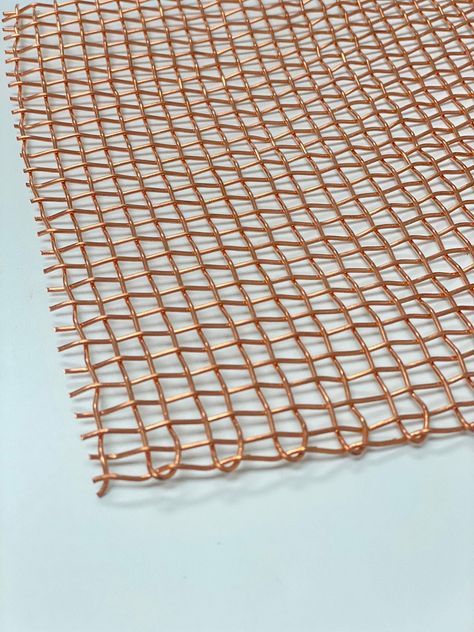

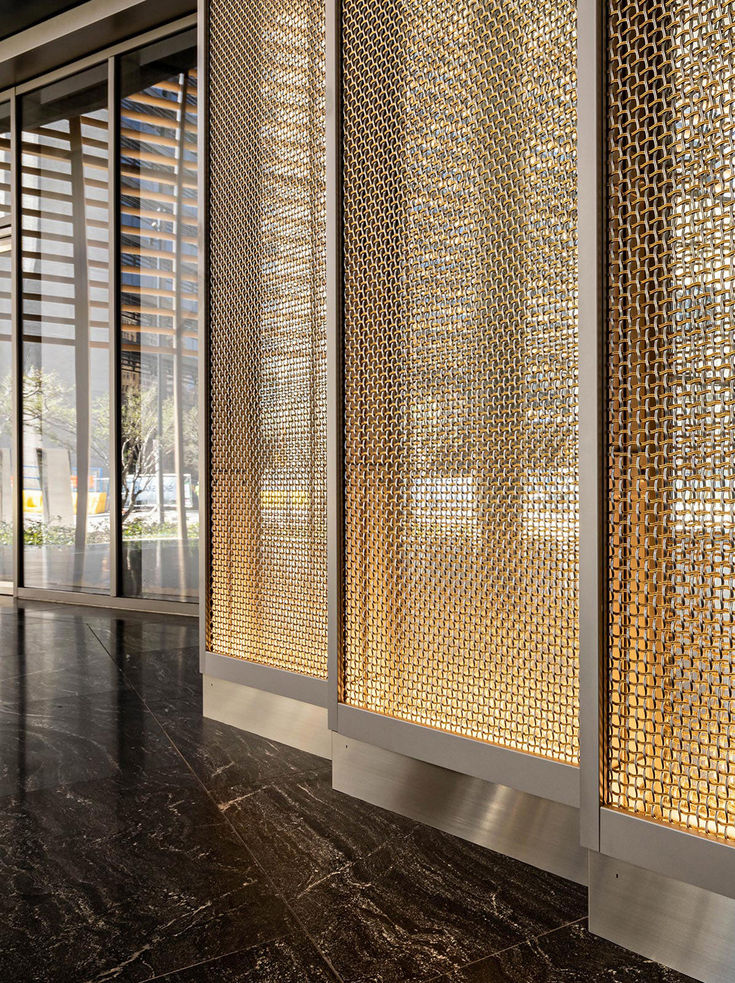

Woven Wire Mesh

Woven Wire Mesh is manufactured by precisely weaving high-quality stainless steel, carbon steel, or other alloy wires into uniform and accurate mesh patterns, offering excellent tensile strength, dimensional stability, corrosion resistance, and consistent openings that ensure reliable performance even in demanding operating conditions.

It is available in a wide range of wire diameters, mesh counts, and materials, and is extensively used in filtration, screening, separation, sieving, and protective applications across industries such as mining, construction, chemicals, food processing, pharmaceuticals, power plants, and engineering sectors due to its durability, versatility, and long service life.

Product Range

  • Mesh Size: 1 Mesh to 2300 Mesh
  • Opening Size: 0.002 mm (2 Microns) to 22 mm
  • Materials Available: SS 304, SS 316, Brass, Phosphor Bronze, Copper, Monel, Aluminium & Galvanised Iron
  • Supply Options: Ready Stock & Made-to-Order Solutions

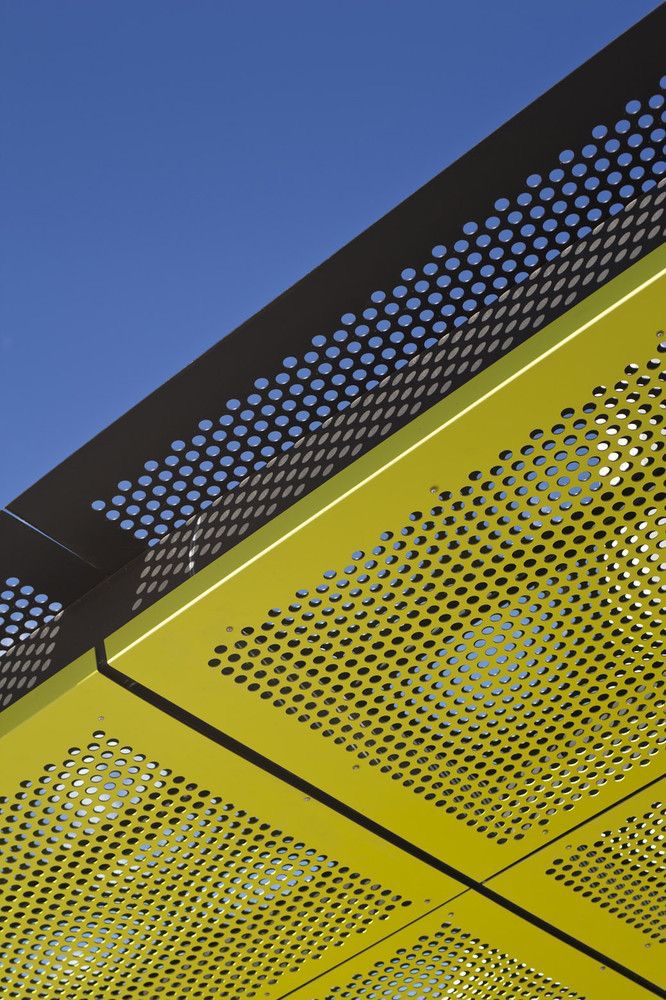

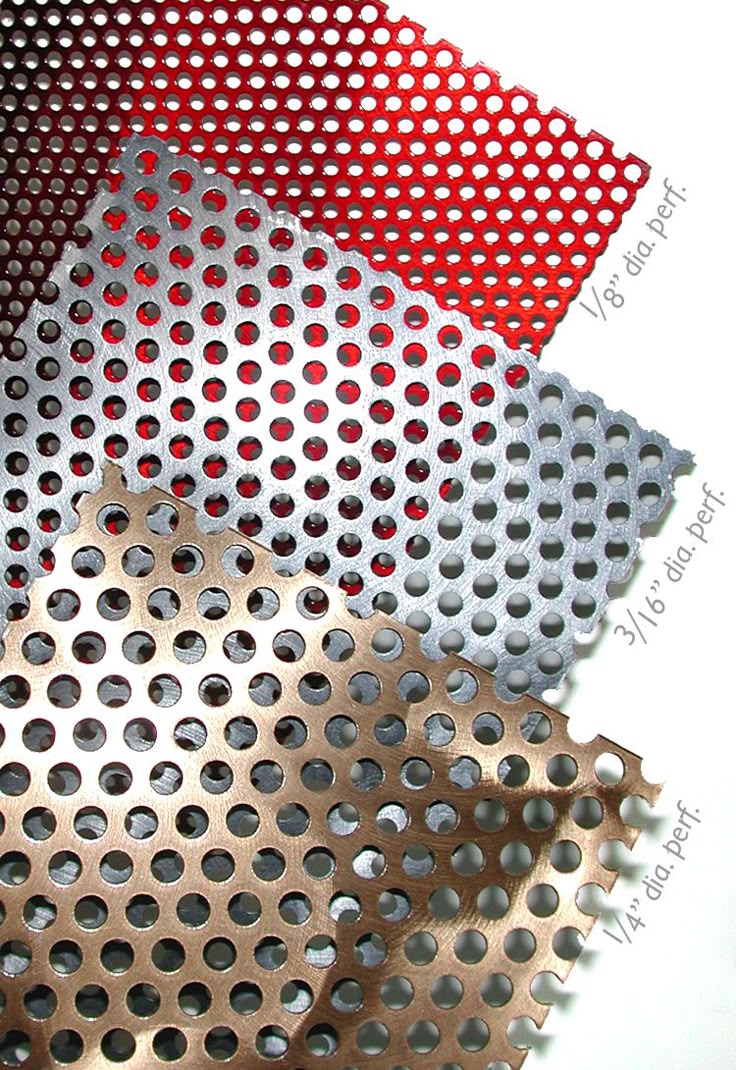

Perforated Sheets

Perforated Sheets are produced by punching accurately designed round, square, slotted, or customized holes into metal sheets using advanced machinery, delivering an ideal combination of strength, ventilation, light transmission, noise control, and visual appeal while maintaining excellent structural integrity.

Manufactured in various materials, thicknesses, hole patterns, and sizes, these sheets are widely used in ventilation systems, acoustic panels, filtration equipment, machine guards, architectural facades, automotive components, and diverse industrial and decorative applications.

Applications Fabrication, Engineering, Automobiles, Food, Agriculture, Decorative, Sound Absorption
Thickness 0.35 MM to 12 MM
Materials Mild Steel, Stainless Steel SS 304, Galvanised Iron (GI), Aluminium, Brass
Hole Shape Round, Square, Slot, Hex
Sheet Sizes 1.25 X 2.5 Meter, 1.5 X 3 Meter, 1 X 2 Meter, Custom Sizes on Request
Hole Diameter 0.5 mm to 100 mm

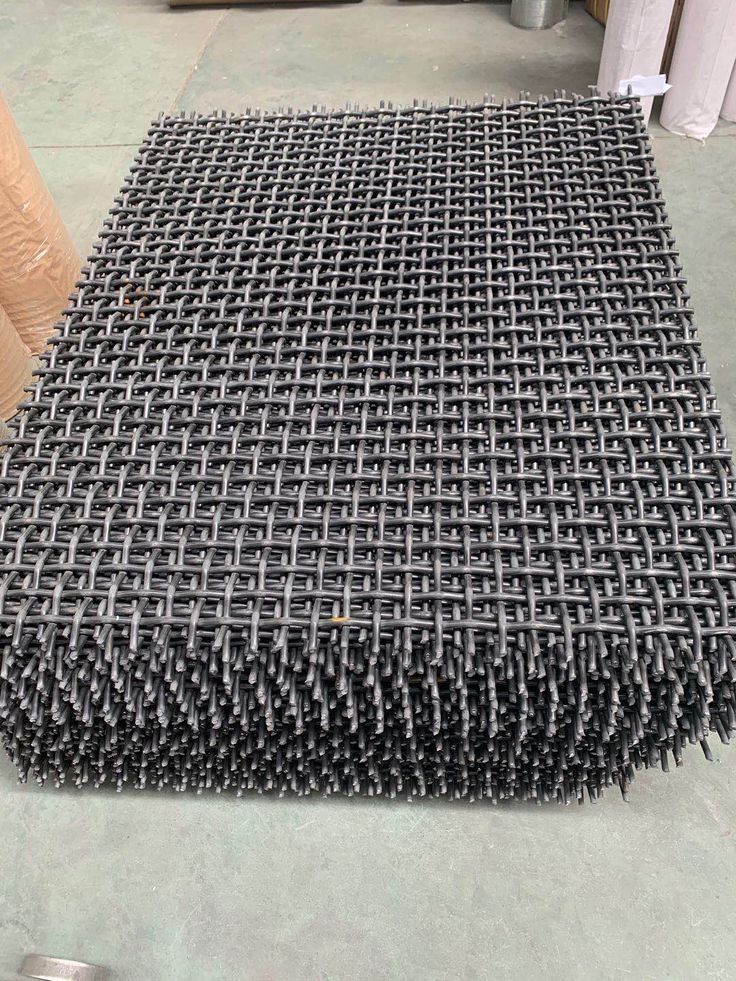

Crimp Wire Mesh

Crimp Wire Mesh is manufactured using pre-crimped wires that interlock firmly at each intersection, providing uniform mesh openings, enhanced rigidity, superior load-bearing capacity, and resistance to deformation under heavy impact, vibration, and continuous operation.

Available in multiple crimp types, wire diameters, and aperture sizes, this mesh is commonly used in mining, quarrying, crushing plants, vibrating screens, grading, and other heavy-duty industrial applications where strength, durability, and consistent performance are critical.

Wire Opening in Inch (“)
8 0.75 to 3.4
10 0.5 to 3.4
12 0.48 to 2.0
14 0.37 to 1.5
16 0.31 to 1.0
