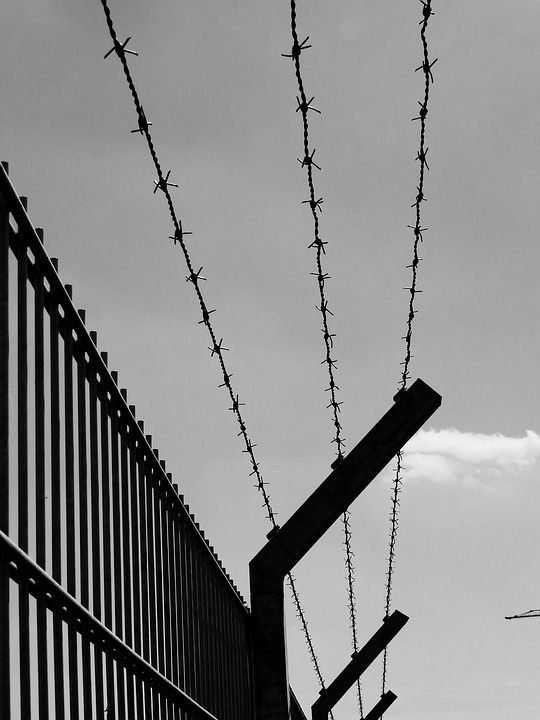

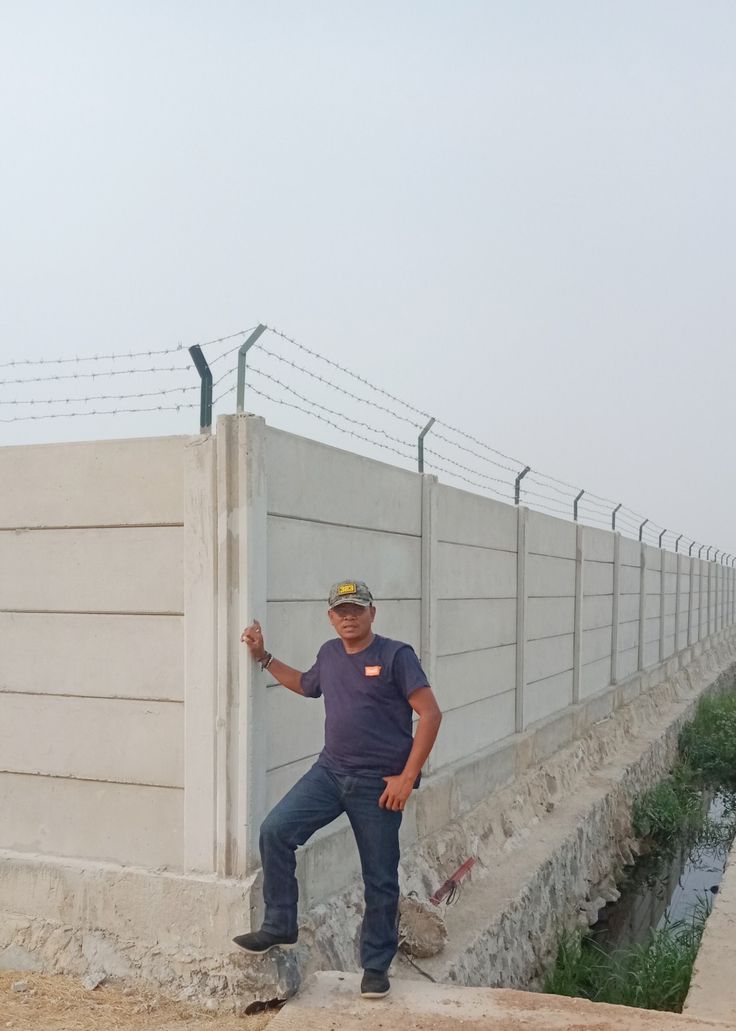

Barbed Wire Fencing

Barbed Wire Fencing is manufactured using high-tensile steel wires with uniformly spaced sharp barbs, designed to provide effective perimeter security, long-term durability, and strong resistance against cutting, corrosion, and harsh weather conditions, making it a cost-effective solution for large-scale boundary protection.

Available in various wire gauges, barb spacing, coatings, and roll lengths, Barbed Wire Fencing is widely used for securing agricultural lands, industrial premises, military zones, highways, prisons, railways, and restricted areas where reliable and low-maintenance security is required.

Specifications

Sl. No. Thickness in SWG Thickness in mm Approx. Length per kg Approx. Weight per Coil Approx. Length per Coil
1 12 SWG x 12 SWG 2.50 mm x 2.50 mm 20 – 22 ft 40 – 50 kg 800 – 1100 ft
2 12 SWG x 14 SWG 2.50 mm x 2.00 mm 28 – 30 ft 40 – 50 kg 1100 – 1450 ft
3 13 SWG x 13 SWG 2.30 mm x 2.30 mm 30 – 32 ft 35 – 45 kg 1050 – 1450 ft
4 14 SWG x 14 SWG 2.00 mm x 2.00 mm 36 – 38 ft 35 – 45 kg 1200 – 1700 ft

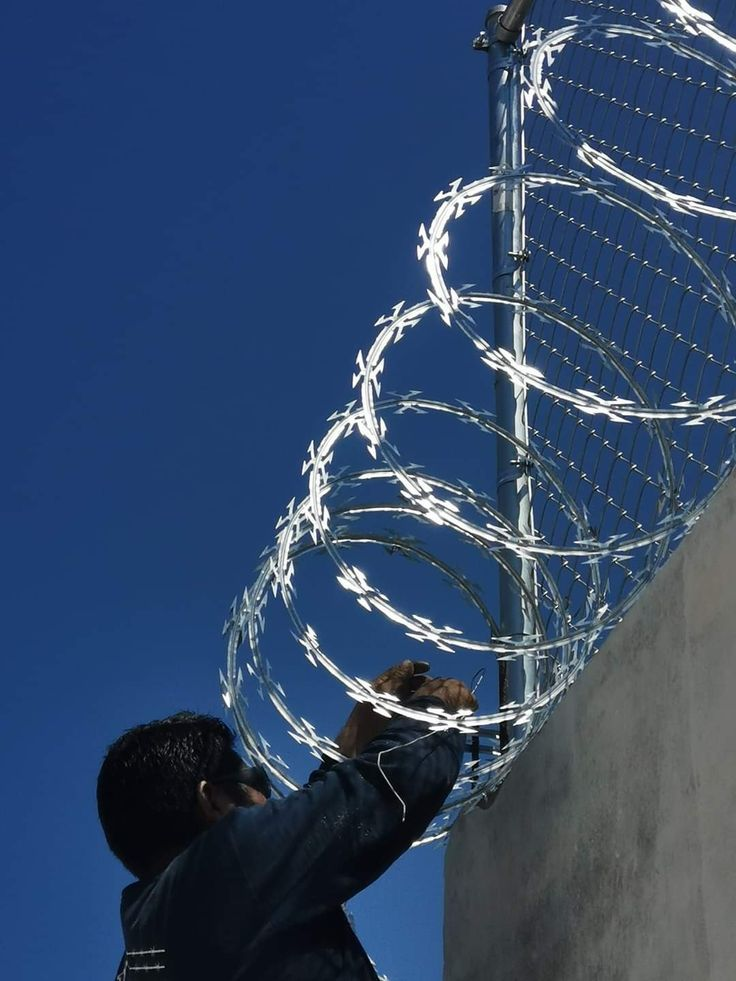

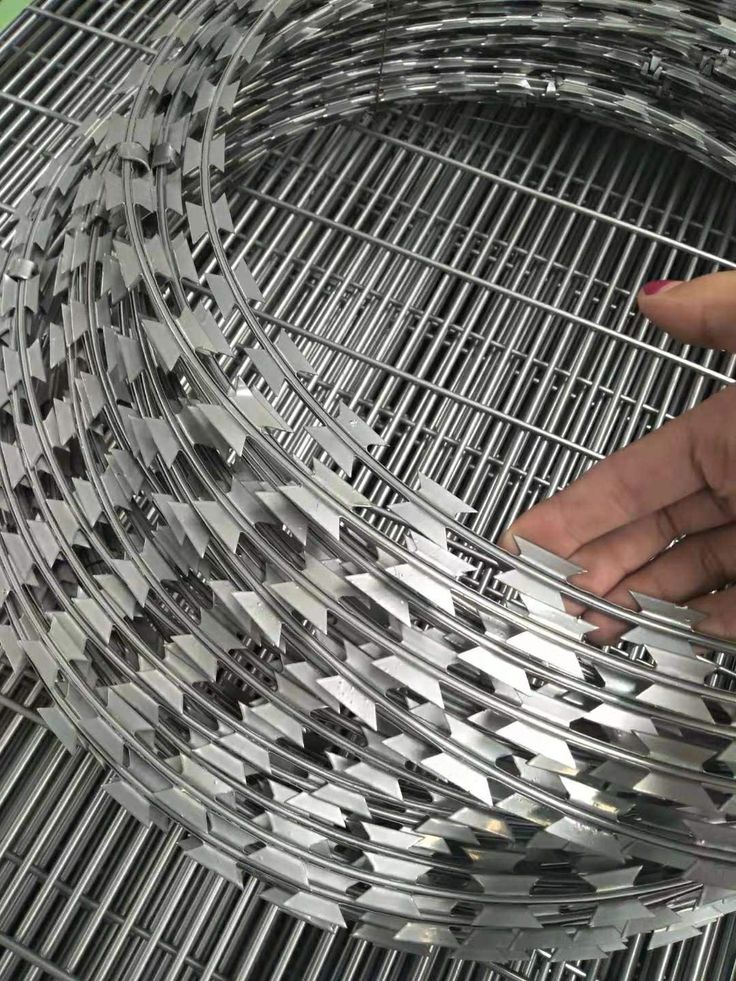

Concertina Razor Wire Fencing

Concertina Razor Wire Fencing is produced from high-strength galvanized or stainless steel strips with extremely sharp razor blades, formed into expandable coils that create a highly effective physical and psychological barrier against intrusion, climbing, or forced entry.

Designed for maximum security and long service life, it is available in different coil diameters, blade profiles, and materials, and is extensively used for border fencing, defense installations, airports, correctional facilities, power plants, and high-security industrial and commercial premises.

Concertina Coil Specifications

Concertina Coils are offered in the following standard sizes:

Sl. No. Diameter of Coil Approx. Weight Per Coil Recommended Stretch Per Coil No. of Circles Per Coil
1 450 mm 5.50 – 6.00 kgs 4.00 – 4.50 mtrs 45 – 50
2 600 mm 7.50 – 8.00 kgs 5.50 – 6.00 mtrs 45 – 50
3 750 mm 9.50 – 10.00 kgs 7.00 – 7.50 mtrs 45 – 50
4 900 mm 11.00 – 11.50 kgs 8.00 – 8.50 mtrs 45 – 50
5 1050 mm 13.00 – 13.50 kgs 9.50 – 10.00 mtrs 45 – 50
