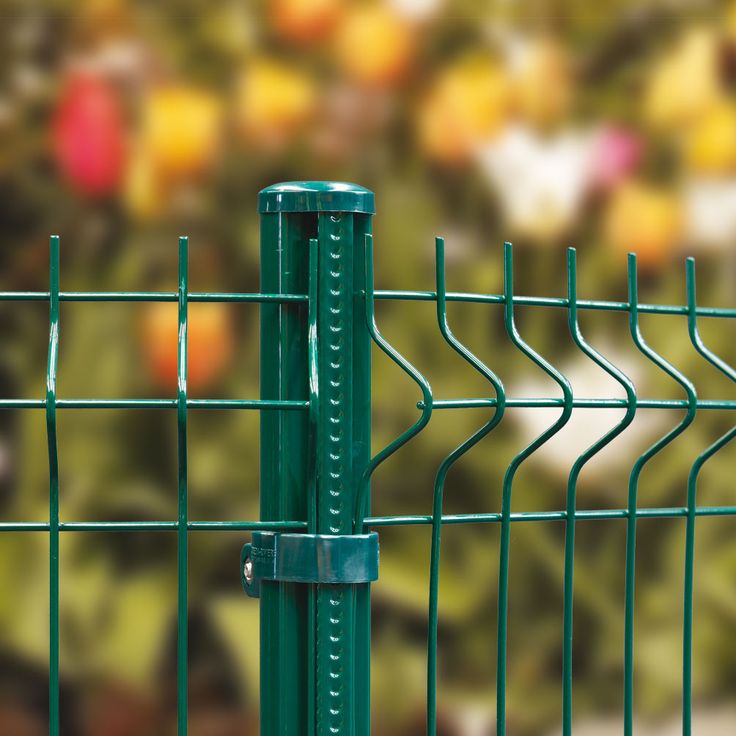

3D Welded Mesh

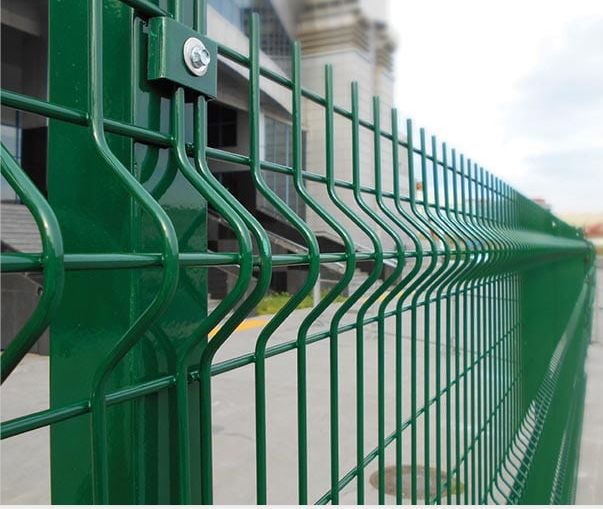

3D Welded Mesh is a rigid fencing solution manufactured by welding steel wires and forming V-shaped bends that enhance strength and structural stability. The three-dimensional profile improves impact resistance while maintaining a clean and modern appearance.

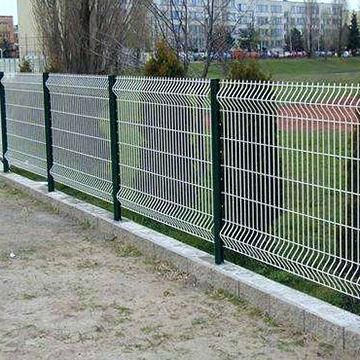

It is widely used for perimeter fencing, industrial boundaries, highways, commercial properties, and security applications. Available in galvanized and coated finishes, 3D Welded Mesh offers excellent corrosion resistance, durability, and low maintenance with easy installation.
| Specifications | Details |
|---|---|
| Mesh Size | 50 x 200 mm / 76 x 200 mm / 50 x 100 mm |
| Wire Diameter | 4.0 mm to 6.0 mm |
| Panel Width | 2500 mm |
| Panel Heights | 1030 mm, 1230 mm, 1530 mm, 1730 mm, 2030 mm & 2430 mm |
| Coating | Minimum 80 Micron Powder Coated as per IS 13871 |
| Material | Galvanized Steel Wire |
| Colour Variants | Moss Green, Signal Red, Jet Black, Anthracite Grey, Lemon Yellow & Siemens Grey |
| Post Types | RHS Posts with Base Plate & Anchor Rod Foundation Options |
| Features | Anti-Cut, Anti-Climb, High Strength, Corrosion Resistant & Weather Proof |
| Applications | Border Fencing, Commercial Complexes, Residential Areas & Farmhouses |
